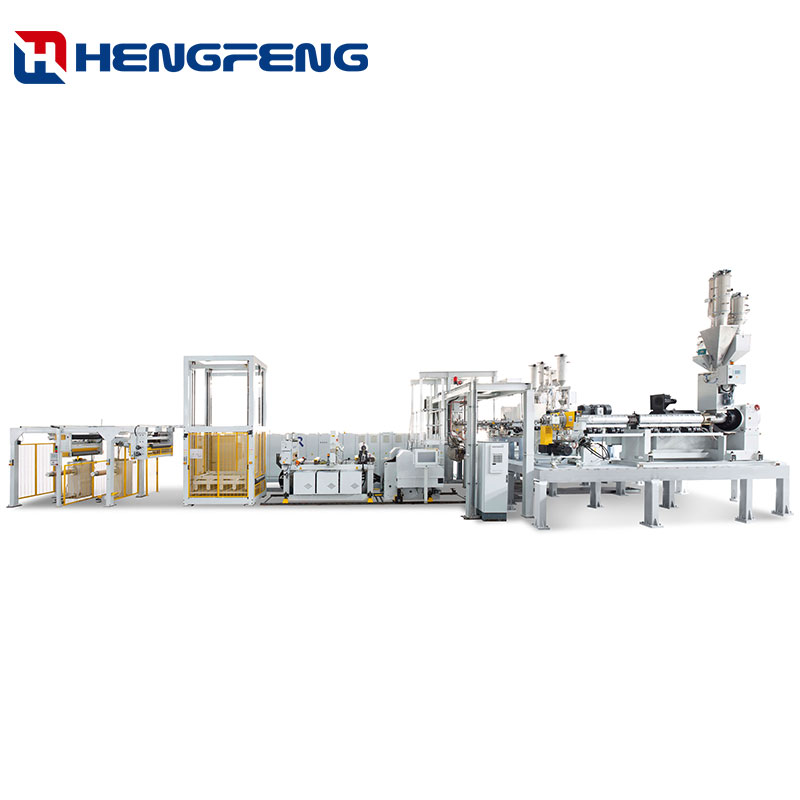

Multi-layer Extrusion-1

Brief Introduction:

HFSJ series extruders are designed for high plasticity requirements, even mixing and high quality sheet materials, suitable for various production requirements. All parts of the machine adopt well-known brands at home and abroad to ensure that the whole production process has high efficiency and stability.



Features

  • The production line is reasonable in design, durable and easy to maintain.
  • High degree of automation, man-machine interface, easy to understand and operate.
  • Optimized screw design, good plasticizing and mixing effect, high output.
  • Extruder can achieve continuous production without shutdown.
  • The inner liner of calendering roll adopts spiral groove design, which has good cooling effect and strong rigidity.
  • Calendering roller adopts independent temperature control system to meet various process requirements.
  • Dragon type rewinder with maximum sheeting rolling dia.15mm.



Main Technical Parameter

Model

HFSJ-100

HFSJ-120

HFSJ-150

Main extruder diam.

100mm

120mm

150mm

Screw L/D

33:1

33:1

33:1

Max.capacity PS

300kg/h

520kg/h

800kg/h

Extruding Motor Power

75KW

132KW

200KW

Max sheet width

750mm

750mm

850mm

Valid T-die width

850mm

850mm

1000mm

Sheet Thickness Range

0.3-2.0mm

0.3-2.5mm

0.4-2.5mm

Roller Diameter

400x1000mm

500x1000mm

600x1200mm

Machine Installed Power

160KW

160KW

350KW

Overall Dimension

14x2.5x4m

15x3x4.5m

16x3.5x4.8m
