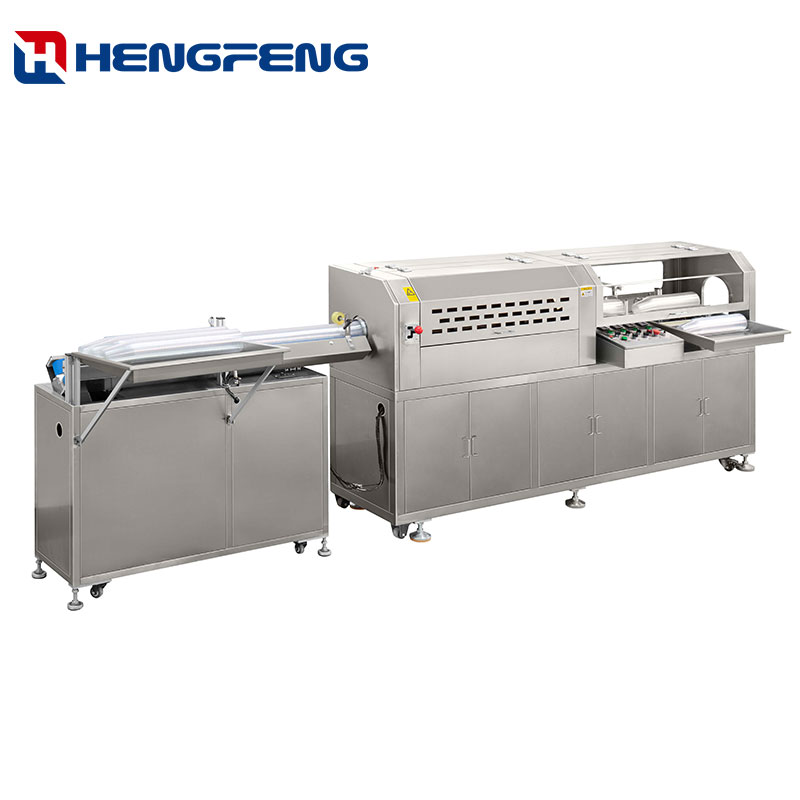

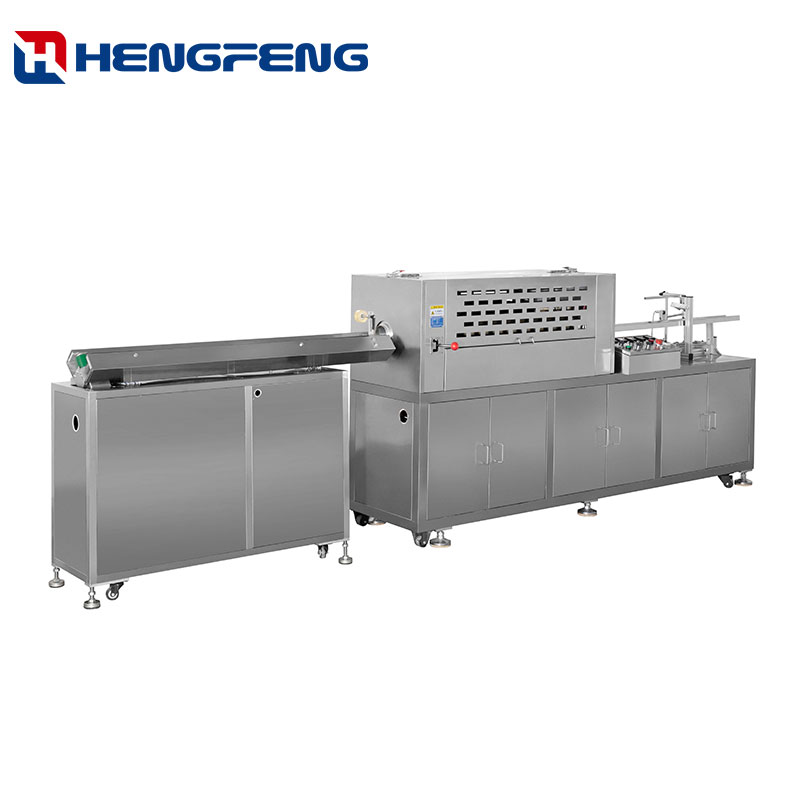

Rimming Machine

Rimming Machine
Rimming Machine
Rimming Machine
Rimming Machine
Rimming Machine
Rimming Machine
Rimming Machine
Rimming Machine

Technical Parameter:

Suitable Dia. Of Curling

85-100mm

Max. Speed of Curling

600-700pcs/min

Air Pressure

0.6--0.7Mpa

voltage

380V, 50Hz

Weight

0.6T

Total Power

6.5KW

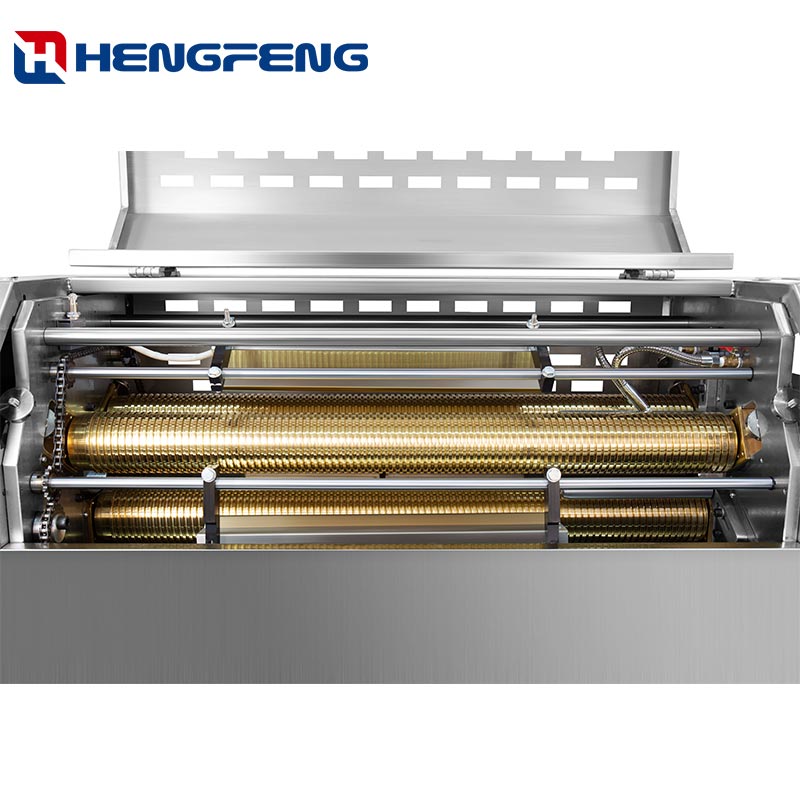

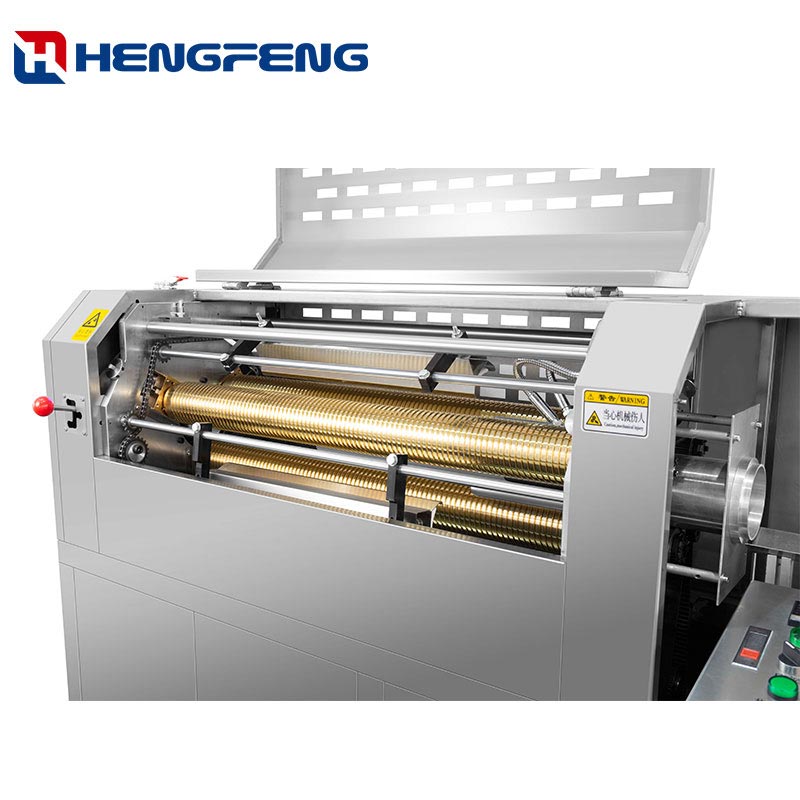

3 screw curling machine:200-800/PCS ,MATERIALS:PET、PLA、PS、PP

More thicker more slower

Electrical accessories

NO.

Name

Brand

Origin

Model

1

Temperature Controller

OMRN

Japan

CH102-K.A

2

frequency transformer

Delta

TAWIAN

VFD022M21A

3

AC

CHINT

CHINT

CJX2-2510

4

 photoelectric switch

DPTEX

JAPAN

NPN-DC24

5

electromagnetic valve

TMP

CHINT

4V210-08

6

 air switch

RMSPD

CHINT

NXB-63

7

 solid state relay

CHELE

TAIWAN

JGX-1

8

Main motor

丰升

CHINA

YII2M-6

9

 auxiliary relay

OMRON

JPAN

MY-2JN

10

Empty Power Supply

MEAN WELL

TAWIAN

220-150-24

11

button

Schneider

FRANCE

2B-BE101C

12

electric slip ring

Dfond

China

Specify new product

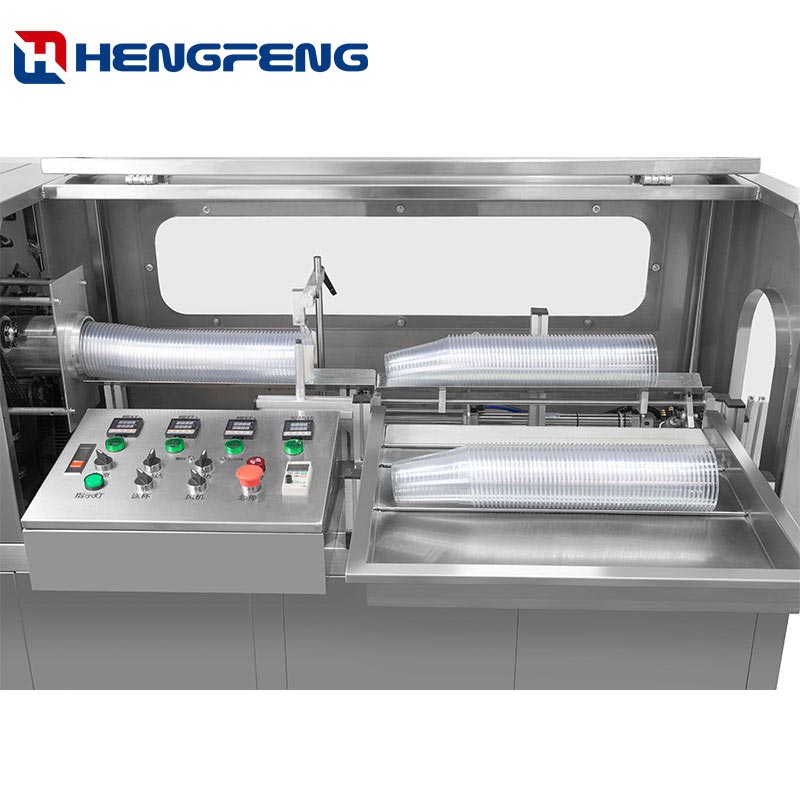

Use:The machine is combined with pneumatic, mechanical and electrical system. The machine is achieved to automatic continuous working feeding cup, curling, completed cup and stacking. It is suitable for sheet of PVC, PS, PET, and PP etc, to make curling the mouth cup.
