Brief Introduction

The IN-LINE version is specially designed for high yield, lower consumption, high hygiene requirement, stable product type and labors saving needs. The advantages of this thermoforming series are high efficiency, reliability, suitable for mass production. Integrated new concept and future trend technology control system to ensure production efficiency and stability.

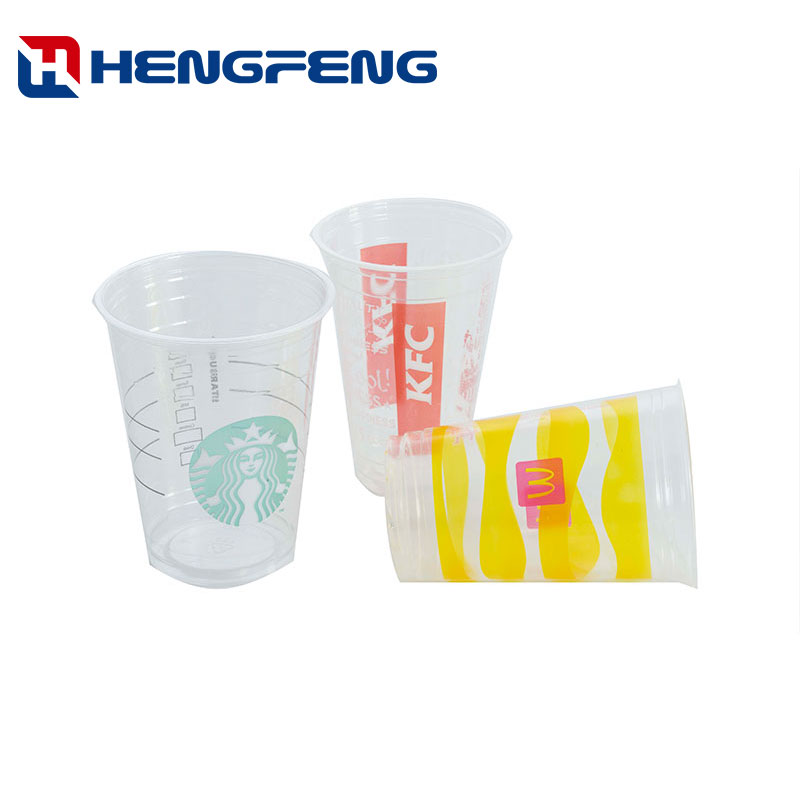

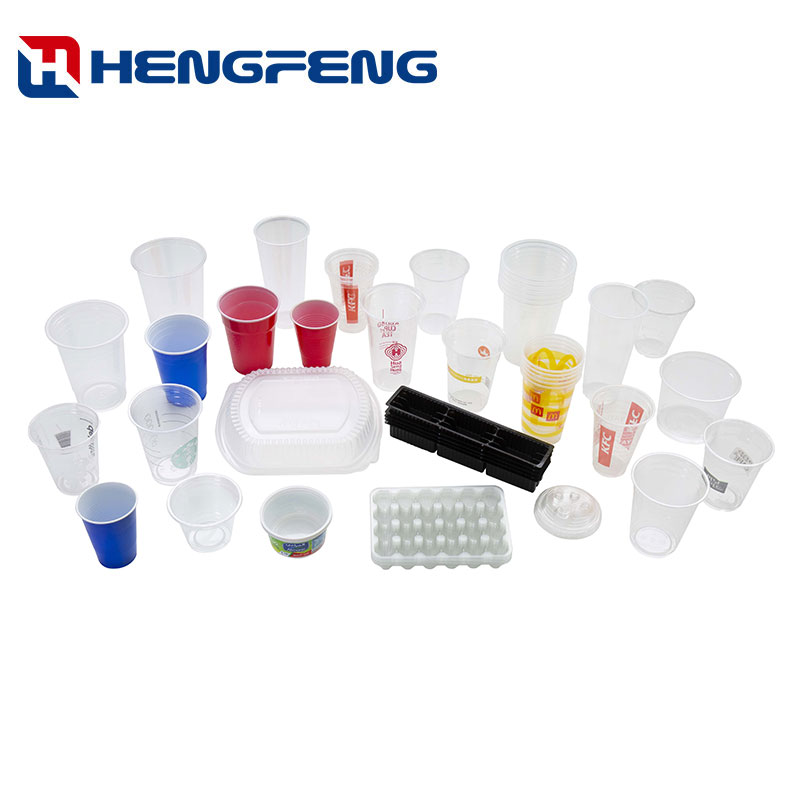

Application: Suitable for PP, HIPS material to produce all kinds of plastic products, such as drinking cups, milk cups, water cups, bowls and containers etc.



Features

  • The production line will automatically proportionally feed, extrude, press, molding, stack, waste crushing and recycling, and complete all operations automatically.
  • The sheet width can be adjusted online, without cutting edge, high utilization rate.
  • Products with 7bar high - speed air - pressing molding, in - die cutting.
  • The machine can automatically count and stack the products to meet the health standards and reduce labor.
  • Plug and feeding driven by Servo motor.
  • High speed: up to 45 analog beats/min.
  • Mould with rapid change device and easy maintenance.



Main Technical Parameter

Model

IN-TF70T-H

IN-TF80T-H

Main extruder diam

120 mm

150 mm

Max.capacity PS

500kg/h

800kg/h

Max.capacity PP

450kg/h

700kg/h

Max.sheet width

730 mm

820 mm

Max.trimming area

680x320 mm

762x470 mm

Max.negative depth

180 mm

180 mm

Max.No-Load Speed

48Cycles/min

42Cycles/min

Forming clamping force

350KN

650KN

Total Installed Power

400KW

600KW
