Brief Introduction

The HFTF-70T-H is designed specially for high yield, lower consumption, high hygiene requirement, stable product type and labors saving needs. The advantages of this thermoforming series are high efficiency, reliability, suitable for mass production. Integrated new concept and future trend technology control system to ensure production efficiency and stability.

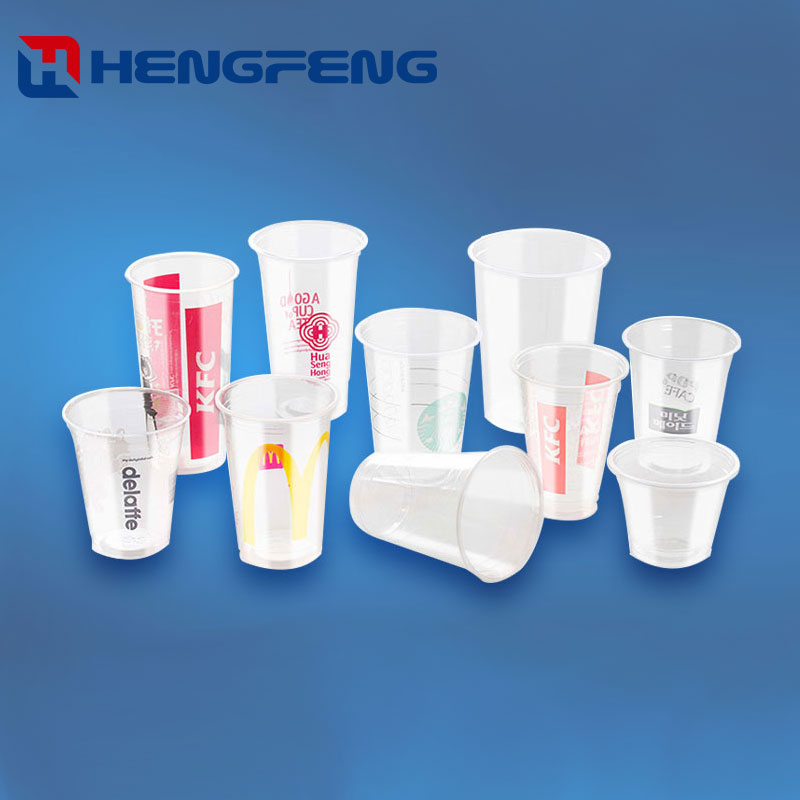

Application: Suitable for forming PP, PS, PET, PLA, PVC sheet that can produce all kinds of plastic products, such as drinking cups, milk cups,water cups, boxes etc.



Features

  • Driven by Cam more durable and faster after optimize design.
  • Forming with 7bar air pressure、cutting in mould.
  • Automatic counting and stacking for more sanitary and save labor.
  • Plug and feeding driven by Servo motor.
  • Maximum speed 45cycles per minutes.
  • Mould with rapid change device、easy maintenance.



Main Technical Parameter

Model

HFTF-70T-H

HFTF-80T-H

Max.tool size with pneumatic clampframe

680x320mm

762x470mm

Max forming depth

180mm

180mm/200mm

Max sheet width

730mm

820mm

Sheet thickness range

0.3-2.5mm

0.4-2.5mm

Clamping force

350KN

650KN

Max.No-load Speed

48Cyles/min

42Cyles/min

Upper/Lower heating power

70/60KW

80/70KW

Air pressure

7-8.5bar

7-8.5bar

Total installed power

160KW

200KW

Machine dimension

12x4x305

13X4.5X3.8

Machine weight

12500kg

15500kg
