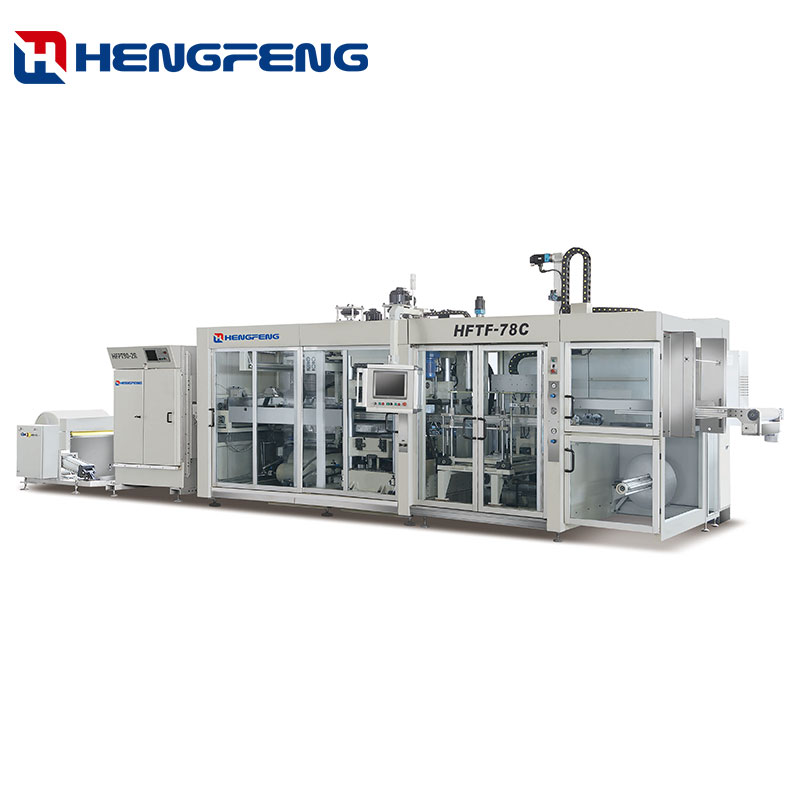

HFTF-78C Series Multistation Thermoforming Machine

HFTF-78C Series Multistation Thermoforming Machine
HFTF-78C Series Multistation Thermoforming Machine
HFTF-78C Series Multistation Thermoforming Machine

Brief Introduction:

HFTF-78C is new series thermoforming of high-performance, high yield, high quality, high efficiency, lower consumption, suitable for mass production. Integrated new concept and future trend technology control system to ensure production efficiency and stability.

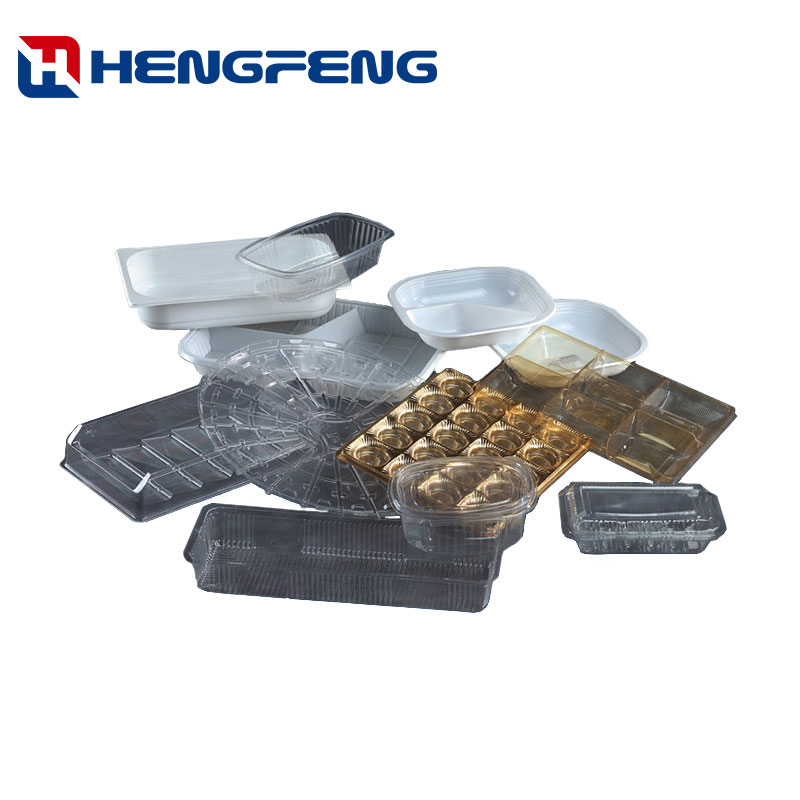

Application: Suitable for forming PP, PS, OPS, PET, PLA, PVC sheet that can be widely used to produce all kind of plastic containers,lids and trays etc.。



Features

  • Product forming and cutting can be completed in the same station (mold cutting), through the mold combination can form: forming - cutting - stacking or molding - punching - cutting - stacking of various combinations.
  • Forming opening and closing action, feeding, cutting, stacking are all driven by servo.
  • Fully automatic production, sheet feeding to the finished product stack, online operation is completed once.
  • Quick mold change and easy maintenance.
  • Equipped with 6bar air pressure molding function and vacuum plastic suction function.
  • Maximum speed 50 cycles per minutes



Main Technical Parameter

Model

65C/3

65C/4

78C

82C/3

82C/4

Max.forming size

625*450mm

625*450mm

750*600mm

780*600mm

780*600mm

Max.pos/neg depth

130/130mm

130/130mm

120/120mm

130/130mm

130/130mm

Max.sheet width

680mm



820mm

830mm

830mm

Max.sheet indexing

460mm



620mm

630mm

630mm

Clamping force

200KN



650KN

350KN

350KN

Sheet thickness range

0.2-2.5mm



0.2-2.5mm

0.2-2.5mm

0.2-2.5mm

PUNCHING PRESS

Max.punching area



590*420mm





750*570mm

Max.punching force



200KN





350KN

Upper/Lower platen stroke



150/150mm





150/150mm

CUTTING PRESS(STEEL RULE CUTTING)

Max.cut dimensions

600*430mm

600*430mm



760*580mm

760*580mm

Platen clamping force

400KN

400KN



600KN

600KN
